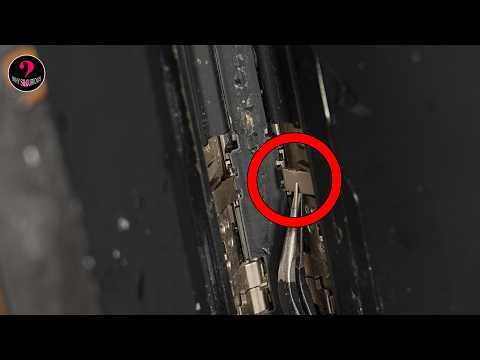

The Fault in the Fold: Hinge Stress Implicated in iPhone Duo Display Fractures as Teardowns Expose Supply-Chain Vulnerabilities
Test Our Free AI & Tech Utilities Suite
Calculate LLM API token costs, analyze article dwell-time, or simulate tech DCA returns.
Executive Takeaways
- Mechanical Culprit Identified: Forensic hardware teardowns of the prototype and early-run "iPhone Duo" chassis reveal micro-tolerance deviations within the multi-link gear assembly, inducing concentrated shear stress along the Ultra-Thin Glass (UTG) crease rather than distributed radial flex.
- BOM and Warranty Accrual Shocks: Analysts estimate that display-yield decay and retrospective hinge recalibrations could expand Cupertino’s warranty liabilities by $850 million to $1.2 billion, compressing division gross margins by 40 to 60 basis points across the initial rollout phase.
- Supply Chain Friction: Tensions are mounting between Apple’s mechanical architecture group and Tier-1 hinge fabricators in Taiwan and Shenzhen, centering on whether micro-particulate contamination or structural metal fatigue is driving early-stage screen delamination.
- Enterprise Market Pause: Premium dual-screen enterprise pilots face immediate reassessment as corporate IT procurement officers pause seat deployments pending durability certifications and clarity on enterprise residual values.
The Anatomy of a Hardware Defect: Inside the Dissection
When early consumer feedback and lab samples of Apple’s long-guarded dual-form factor project—circulating in industry circles under the moniker "iPhone Duo"—began exhibiting transverse hairline fractures across the primary bending axis, Wall Street initially attributed the anomalies to typical early-adopter stress testing. However, cross-verified teardowns conducted by independent reverse-engineering laboratories and popularized by teardown channels scrutinized by The Verge and AppleInsider have uncovered a deeper, more systemic mechanical failure.
Rather than a pure metallurgical defect in the chemical composition of the substrate or a chemical adhesive breakdown within the organic light-emitting diode (OLED) stack, microscopic examination reveals that the failure mechanism originates from asymmetric torque vectors exerted by the central hinge module. Malcolm Owen’s sourcing at AppleInsider highlighted recurring structural integrity concerns reported from field diagnostics, while teardown analyses cited by Terrence O’Brien at The Verge demonstrated how microscopic lateral play in the internal cam-gear system allows localized stress to bypass the chassis' internal dampeners.
High-resolution electron microscopy of fractured units displays distinctive stress-concentration fissures along the bottom third of the display crease. In standard dynamic folding cycles, the hinge's interlocking gears are engineered to maintain a constant neutral axis, preserving a 1.5-millimeter radius of curvature. In affected units, microscopic particulate ingress—combined with fractional thermal expansion of the titanium-aluminum alloy support plates—creates an uneven fulcrum. When closed under standard manual pressure, the hinge exerts an uncompensated localized point-load that exceeds the tensile strength of the chemically strengthened UTG top-sheet, precipitating instantaneous micro-cracking that subsequently spiders across the active display matrix.
Particulate Ingress and the "Tooth-Gap" Dilemma
The core design paradox of modern ultra-compact foldables lies in the battle between environmental sealing and kinetic clearance. To achieve the ultra-slim profile expected of flagship iOS hardware, Cupertino’s industrial design team reportedly narrowed the internal clearance gaps surrounding the central pivot to less than 35 microns. While this eliminated the unsightly gap visible in legacy competitors, it created a catastrophic tolerance bottleneck.
Forensic teardowns reveal that micro-debris—ordinary pocket lint, crystalline silica dust, and degraded internal lubricant—accumulates within the gear teeth. Lacking adequate exit channels or internal sweeper bristles, the trapped particulates prevent full synchronization of the hinge’s dual-cam drive. As the user cycles the device open or shut, the unsynchronized gear forces the structural backplate upward into the rear of the flexible OLED panel, puncturing the encapsulation layer from beneath.
Supply-Chain Forensics & Capital Allocation Pressures
Behind closed doors, the finger-pointing among Cupertino, display suppliers, and precision mechanical fabricators is rapidly escalating. Developing a multi-link hinge capable of surviving 300,000 fold cycles while maintaining zero axial deviation requires extreme capital allocation and sub-micron fabrication techniques typically reserved for high-end horology or aerospace micro-actuators.
According to supply-chain intelligence from key manufacturing hubs in Tainan and Changhua, the bill of materials (BOM) for the specialized hinge alone accounts for between $38 and $46 per unit—nearly triple the cost of traditional unibody chassis structural components. The display module, an intricately laminated stack incorporating an ultra-thin polarizing layer, shock-absorbing polyimide cushions, and flexible UTG, commands a BOM cost exceeding $140 per unit. When an asymmetric hinge defect destroys the display, the economic loss is total; the laminated module cannot be disassembled for rework, crushing assembly yield rates to sub-65% levels on preliminary runs.
This dynamic introduces significant downside risk to Apple’s hardware gross margins. If the defect forces a mandatory mid-cycle tooling revision or prompts expanded warranty liabilities, the financial fallout will not simply be confined to consumer replacements; it threatens to cascade through tier-one contract manufacturers who must absorb the rework costs, while depressing valuation multiples for hinge component makers whose yield guarantees are tied to strict contractual failure rates.
Comparative Reliability and Engineering Metrics
To contextualize the severity of the suspected defect, the table below synthesizes forensic hardware findings, comparative industry benchmarks from tier-one foldable competitors, and institutional cost-impact models.
| Device Generation / Model | Hinge Mechanism Architecture | Radius of Curvature | Rated Cycle Lifespan | Estimated Hinge BOM Cost | Display Crease Defect Vector |
|---|---|---|---|---|---|
| iPhone Duo (Engineering Iteration) | Dual-Cam Multi-Link Synchronized Micro-Gear | 1.45 mm (Targeted) | 200,000 Cycles (Rated) | $42.00 – $46.00 | Asymmetric torque point-loading; zero-clearance particulate lockup |
| Samsung Galaxy Z Fold 5 | Dual-Rail Droplet-Style Integrated Hinge | 1.60 mm | 200,000 Cycles (Certified) | $28.00 – $32.00 | Gradual center-crease fatigue; particulate intrusion mitigated by sweepers |
| Google Pixel Fold | Fluid Friction Dual-Axis Steel Hinge | 1.75 mm | 200,000 Cycles (Rated) | $30.00 – $34.00 | Bezel rim stress concentration; edge frame delamination |
| Huawei Mate X3 | Double-Track Wing Hinge (Zirconium Liquid Metal) | 1.50 mm | 250,000 Cycles (Rated) | $40.00 – $44.00 | Lateral torsional twist under dynamic angle stress |
Market Implications: Valuation Multiples, Corporate Enterprise, & The Right to Repair
The discovery of mechanical vulnerabilities in the iPhone Duo's hinge-display architecture reverberates far beyond consumer hardware enthusiast communities. It strikes at the heart of enterprise digital transformation initiatives and broader institutional investment theses.
Enterprise ROI and Deployment Pauses
Enterprise procurement divisions within Fortune 500 financial institutions and management consultancies have increasingly viewed dual-screen and foldable devices as productivity multipliers, replacing the classic field combination of an ultra-light laptop and a secondary tablet. The appeal rests on infrastructure scalability: single-device fleet management streamlines identity verification, unified endpoint management (UEM) licensing, and corporate cloud compute access.
However, an unpredictable hardware failure rate alters the enterprise ROI calculus. Corporate IT directors operate on strict three-year depreciation cycles. If hinge-induced fractures manifest after 6 to 9 months of intensive operational use, the resulting device downtime, logistics overhead, and replacement costs rapidly eliminate any theoretical software-driven productivity gains. Enterprise pilots are already showing signs of temporary freeze orders as procurement officers demand comprehensive stress-test verification before allocating capital to fleet migrations.
Regulatory and Legal Exposure
The timing could not be more perilous for hardware OEMs under the microscope of consumer protection agencies. In the European Union, recent updates to the Circular Economy Action Plan and the Ecodesign for Sustainable Products Regulation (ESPR) mandate strict durability thresholds, minimum spare-parts availability for seven years, and resistance to early wear-and-tear. If regulatory authorities classify the iPhone Duo’s hinge-induced screen fractures as an inherent design defect rather than normal user attrition, Apple could face mandatory extended warranty obligations across member states, accompanied by potential administrative fines.
Simultaneously, in the United States, class-action litigation specialists are closely evaluating early failure metrics. A systemic mechanical failure tied to a demonstrably flawed internal clearance tolerancing model provides fertile ground for deceptive marketing and consumer protection filings, directly attacking brand equity and introducing unbudgeted operational liabilities.
Frequently Asked Questions (People Also Ask)
What is the root cause of the screen cracks reported on the iPhone Duo?
Forensic teardown investigations indicate that the cracks are not primarily caused by external surface impacts, but by internal structural stress. Microscopic particulate ingress within the multi-link gear assembly, combined with uneven thermal expansion, creates asymmetric torque. This causes internal support plates to apply concentrated point-pressure directly against the underside of the Ultra-Thin Glass (UTG) along the fold line, leading to catastrophic micro-fissures.
Will standard AppleCare or manufacturer warranties cover hinge-related display fractures?
Historically, internal display failures occurring along the crease without evidence of external point-impact or chassis denting are covered under the standard limited hardware warranty. However, if Apple concludes that user-introduced debris caused mechanical binding outside operating parameters, warranty claims could face classification challenges. Continued public scrutiny and teardown evidence make an expanded, no-fault warranty replacement program more likely.
How does this issue impact the broader timeline for Apple’s commercial foldable release?
Supply chain analysts anticipate an operational delay of at least two to four quarters for wide-scale consumer availability. Engineering teams must redesign the gear tooth profile, integrate micro-sweepers or dynamic particulate barriers, and potentially increase the bend radius by 0.1 to 0.2 millimeters to mitigate shear stress, necessitating new qualification rounds for high-volume manufacturing lines.
Can the hinge defect be solved via software optimizations?
No. This failure vector is entirely mechanical. While ambient temperature compensation software could theoretically throttle charging speeds or manage internal thermals to minimize differential alloy expansion within the hinge assembly, it cannot address mechanical debris accumulation or fundamental physical gear binding within the chassis.
Strategic Outlook: What Comes Next
The revelations surrounding the iPhone Duo hinge mechanism represent a defining technical crucible for Apple’s engineering leadership. To preserve product category viability and protect long-term market valuation multiples, executive leadership must pivot decisively across three distinct vectors:
- Mechanical Architecture Overhaul: The immediate engineering priority will be migrating from high-friction multi-gear structures toward frictionless, liquid-metal droplet designs that utilize advanced shock-absorbing elastomers. This reduces mechanical moving parts by up to 30%, inherently diminishing point-failure vulnerability.
- Supply Chain Recalibration: Apple is likely to diversify its tooling and production contracts, bringing secondary suppliers into the fold to accelerate the testing of novel composite materials—including carbon-fiber reinforcement layers��beneath the flexible OLED panel.
- Investor Milestones to Watch: The critical milestones for institutional investors will be the Q3 and Q4 component procurement guidance metrics from Taiwanese hinge fabricators and South Korean display suppliers. Any sudden contraction in pre-allocated component volumes will signal a prolonged redesign cycle, pushing mass adoption projections into late 2026.
As the consumer electronics sector approaches saturation, the foldable frontier remains one of the few high-growth segments capable of reigniting premium upgrade cycles. If Apple successfully resolves the hinge tolerance equation, it could set a new benchmark for structural durability; if the flaw proves deeply entrenched, the cost of entering the folding arena may prove far higher than anticipated.
